Gainsborough Impulse (Impulse) Shower Spares

Gainsborough Impulse
14 spares listed

Brand: Gainsborough
SKU / MPN: Gainsborough Impulse
Categories: Gainsborough Shower Spares

All available shower spares/replacement parts to fit the Gainsborough Impulse (Impulse).

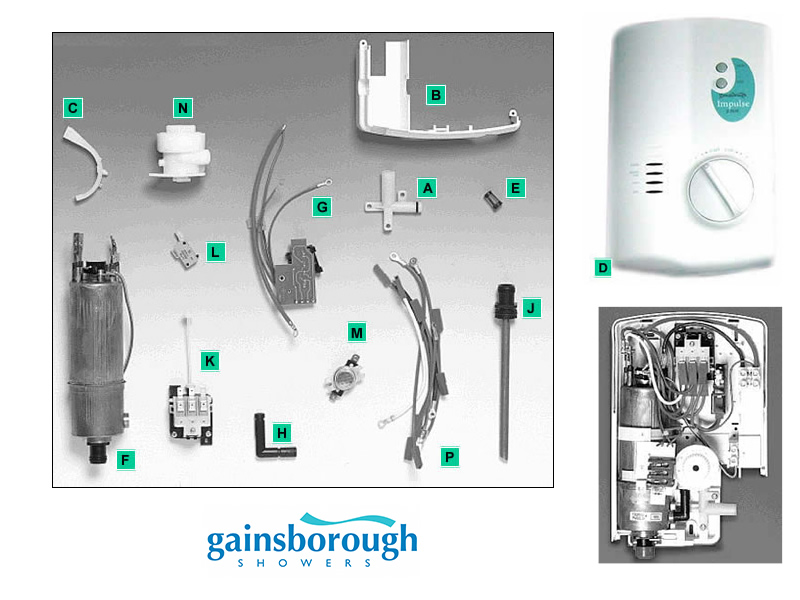

Use the main diagram to identify the shower spare(s) you need to replace. Then use the table below to locate your relevant part(s).

Not what you're looking for? Try our unique Shower Spares Finder.

Need any help identifying the fault with your shower? Take a look at our handy Fault Finder page.

Otherwise please feel free to contact us.

There are 3 currently available spares for the Gainsborough Impulse (Impulse).

These are sorted by diagram reference first (if available) and then by product code in numerical / alphabetical order:

Ref. A 95.605.612
Gainsborough Inlet adapter (95.605.612)

Discontinued

Ref. B 95.614.149
Gainsborough backplate assembly/service tunnel (95.614.149)
£7.40

£7.40 Add to Basket

Ref. C 95.607.519
Gainsborough heat exchanger clamp assembly (95.607.519)

Discontinued

Ref. D 95.614.193
Gainsborough Impulse front cover assembly - White (95.614.193)

Discontinued

Ref. E 95.605.613
Gainsborough inlet filter assembly (95.605.613)

Discontinued

Ref. F 95.608.612
Gainsborough heat exchanger assembly - 9.5kW (95.608.612)

Discontinued

Ref. G 95.615.037
Gainsborough PCB and neon assembly (95.615.037)
£6.80

£6.80 Add to Basket

Ref. H 95.607.522
Gainsborough inlet pipe (95.607.522)

Discontinued

Ref. J 95.607.524
Gainsborough/Heatrae pressure relief device (PRD) - 9.5kW (95.607.524)

Discontinued

Ref. K 95.613.621
Gainsborough pressure switch assembly - 9.8kW/10.8kW (95.613.621)

Discontinued

Ref. L 95.613.617
Gainsborough push button switch assembly (95.613.617)

Discontinued

Ref. M 95.612.610
Gainsborough thermal cut-out switch (TCO) (95.612.610)

Discontinued

Ref. N 95.605.610
Gainsborough flow control valve assembly (95.605.610)

Discontinued

AM710122
Croydex 18-25mm push on universal shower head holder - white (AM710122)
£4.50

£4.50 Add to Basket
Do you have a question about the Gainsborough Impulse (Impulse)?

Click the button below to send a question to one of our expert members of staff and we will email you back a direct response. If we feel the information might be useful to other customers, we will also show your question below for others to see.

Ask a Question
- i reguire a water control knob , have you any in stock ?-- gainsborough impulse 9.5kw

  There ar no dials or covers available for the gainsborough inpulse showers, they are now all obsolete.

  Regards
- Why when I turn on does water come out of the bottom of the control box? Does it mean a seal has gone inside the box?

  Hello, it could be leaking from anywhere, a qualified person will need to remove the cover any check for the fault.
- Is there a user manual available for a Gainsborough Impulse electric shower 9.5kW?
  Thank you
  Tony

  Hi
  Unfortnately the only information we have is located on our site.
- Good morning, I have the gainsborough impulse 9.5kw shower unit , but the control switch on the front facure is not connecting with the internal mechanisim. When I removed the front cover the small post on the inside of the front facure had snapped off , and I have tried gluiong the item , but it keeps breaking away. Can you advise if it is possible to simply buy a new front cover ? many thanks

  Hello, the Impulse cover is now obsolete, we do not have any stock left
