Ultra 1/2" CD valves (pair) (SPR02)

Ultra 1/2" CD valves (pair) (SPR02) - main image 1 Ultra 1/2" CD valves (pair) (SPR02) - main image 2

CLICK PHOTO TO ENLARGE

  • Product Description:

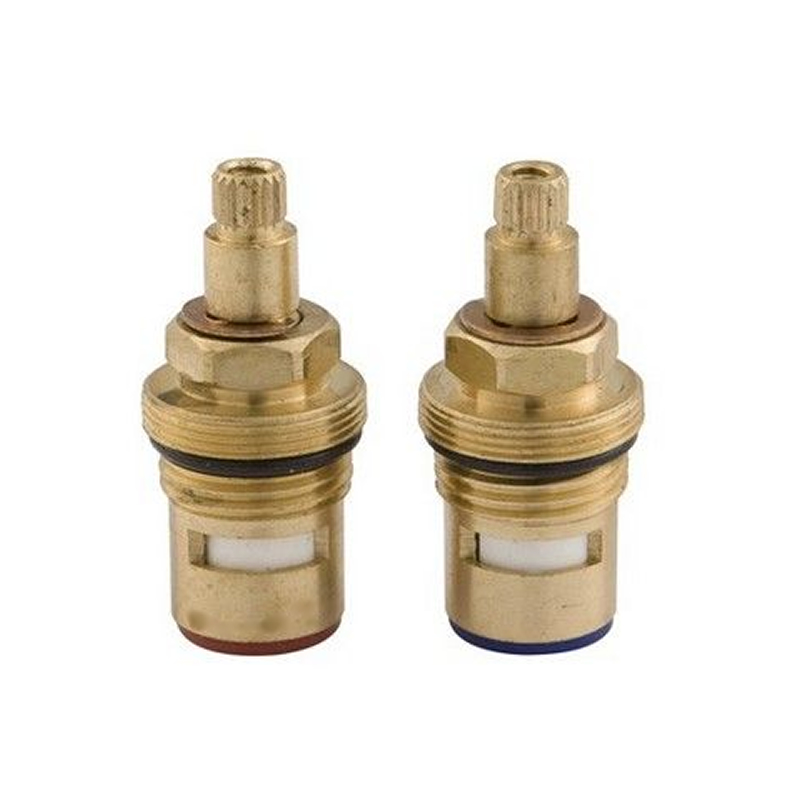

    Ultra 1/2" CD Valves (pair).

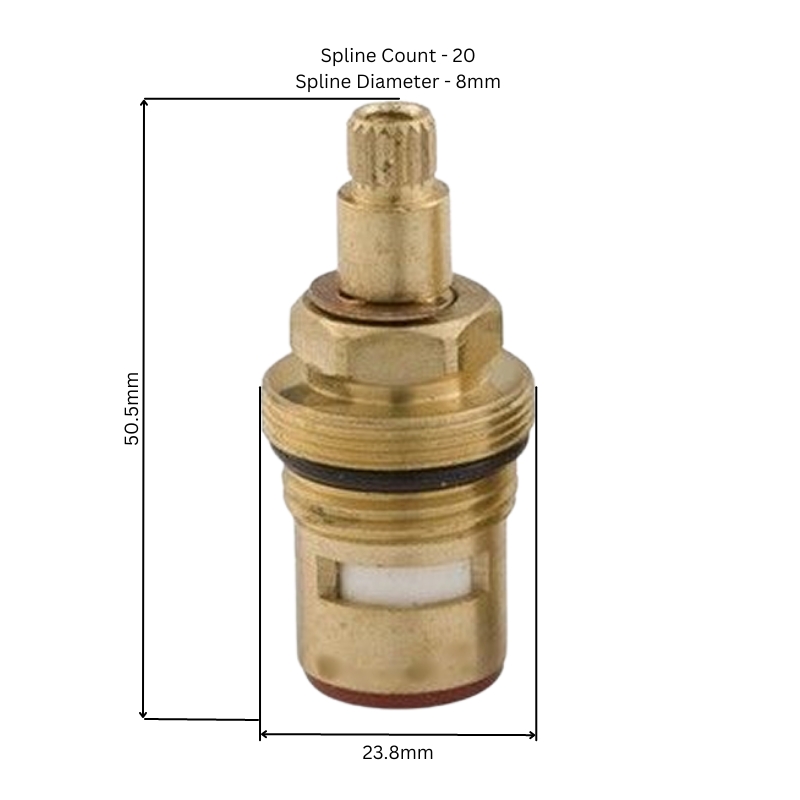

    Cartridge Measurements:
    Total Length (including bottom seal): 50.5mm
    Diameter at Widest Point: 23.8mm (at flange thread)
    Spindle Length (from top of hex to top of splines): 16mm
    Top Spline Diameter: 8mm
    Top Spline Teeth / Notches: 20
    Lower Thread Diameter: 20.5mm (1/2" BSP)
    Barrel Diameter Below Lower Thread: 18.3mm
    Bottom Seal Colour: Red & Blue
    Close Direction: Clockwise Close & Anti-Clockwise Open
    Turn: Quarter Turn (1/4 Turn) 90°
    Diameter of Hex: 17mm

    The Ultra 1/2" CD valves (pair) (SPR02) is a genuine, brand new Ultra product, covered by a minimum 1 year Ultra manufacturer's guarantee.

    Available for same day despatch if ordered before 3:30pm Monday-Friday (otherwise despatching will be on the next working day). For the delivery options available for this product, please add it to your Basket or see our delivery options page.

    Not what you're looking for? See all Ultra Shower Cartridges or try our unique Shower Spares Finder.

    For advice on this or any product, please call 01452 619836, email us at support@showerspares.com, or see our contact page.

    Product Specifications:

  • The Ultra 1/2" CD valves (pair) (SPR02) will fit the following 1 product.

    List(s) are sorted by product type and then alphabetically.

    Hover overTap any icon below to see a preview of that model.

    May fit other products.

    If you are unsure of your product model, or would like more information, please contact us.

  • A selection of the latest reviews for the Ultra 1/2" CD valves (pair) (SPR02) can be read below:

    • Easy to fit and solved problem of dripping taps.

      Jane Gambie

    • Good product and good service.

      Michael Valenzia

    • At last I have located a replacement SPR02 CD tap valve at a reasonable price. It remains to see if these last longer than the ones supplied with the taps.

      Bob

    • Required these valves for my Hudson Reed tap as one of the valves was faulty... NSS sent the part promptly and were cheaper than everyone else online, very happy... Thank you...

      Munim Miah

    • The product looks to be good quality but time will tell I guess.
      What I can say is the service received and price paid was first class, I will definitely use them again.

      Mark Nelson

    • Arrived the next day and they are working well after one week.

      AK

    • Items arrived quickly and were identical to the ones being replaced. Changed both hot and cold valves very easily in around 15 minutes. Dripping taps cured. Very pleased.

      Richard Foden

    • Exactly as ordered, fast delivery

      Stephen
